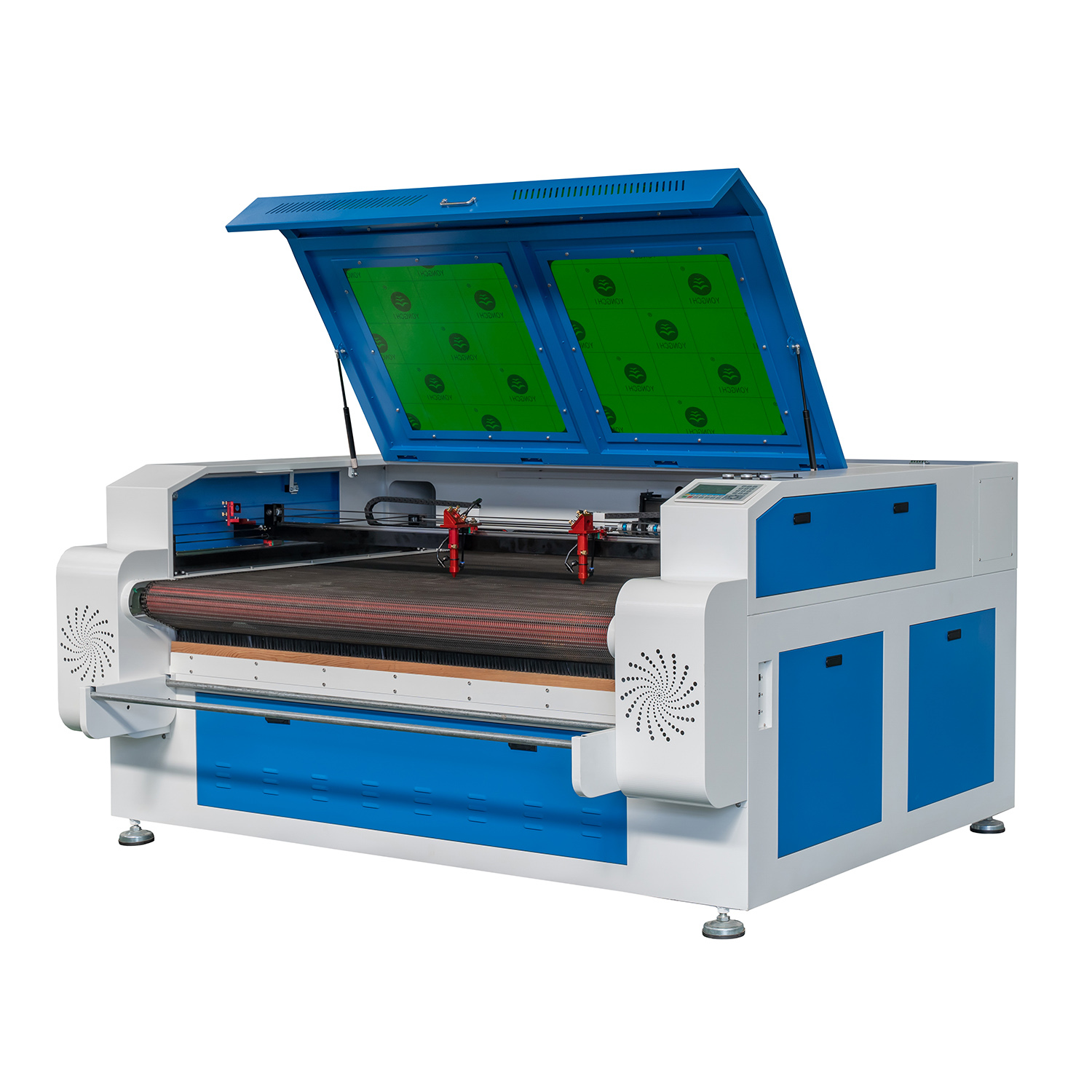

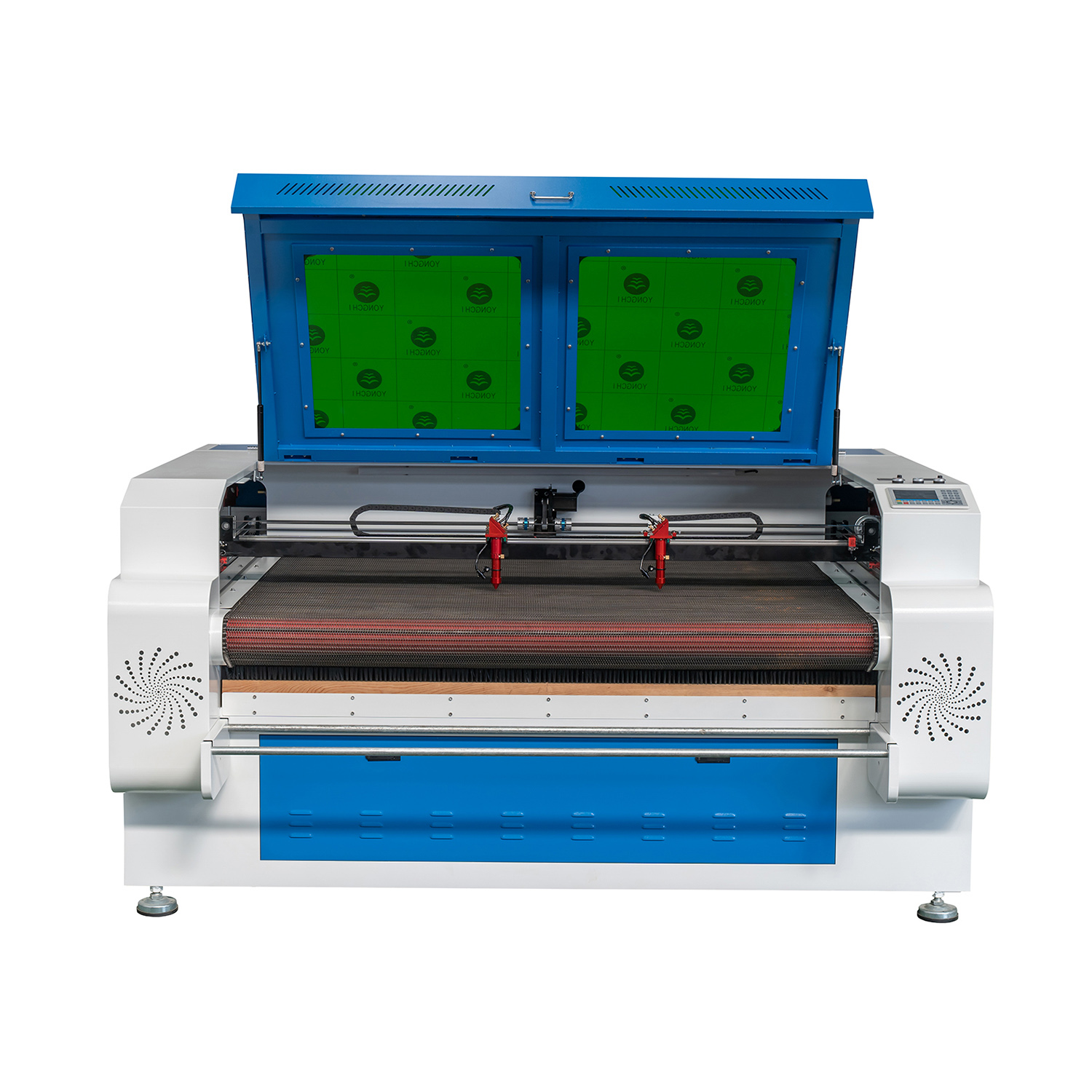

1610 CO2 laser engraving and cutting machine with double head

Short Description:

This machine adops DSP & laser power source with self owned property right as well as integrated frame-structure ensure the working stability and reliability, the latest software can support Auto CAD, CorelDRAW,CAM, and other graphical software, and it can to directly output pictures. The USB data interface support heat play & plug, quick data transiting without taking up computer resource. LCD display is easy for user to operate.


Detail

Product Parameter

 model

1610

1810

1813

1830

Outer dimensions

2220*2000*1080MM

Device color

Grey / white / red

Laser type

CO2 Closed laser tube

 laser power

80W/100W/130W/150W

Cutting thickness

0-15MM depends on the material

The speed of carving

1-3000MM/Min

 cutting speed

1-3600MM/Min

 positioning accuracy

±0.01MM

Minimal formative words

Chinese characters 2*2/MM and letters 1*1/MM

Image format

BMP, PLT, CDR, DMG, DXF, JPG, etc

 input voltage

AC220V/50Hz   AC110V/60Hz

 work space

1600x1000MM

1800x1000MM

1800x1300MM

1800x3000MM

 cooling-down method

Water cooling and protection system

 foot platform

Cellular platform / blade bar platform / automatic feeding (optional)

 system environments

Win XP/7/8

 working temperature

5-45℃

 weight of equipment

About 700KG



Product Description:

When it comes to material adaptability, CO2 laser engravers excel. It is capable of engraving a variety of materials, including wood, acrylic, fabric, leather, paper, plastic, glass, ceramics, and more. Whether it is soft fabric or hard glass, it can present exquisite engraving effects under its action, which makes it extremely practical in industries such as handicraft production, advertising signage, packaging and printing.
High engraving accuracy is a distinctive feature of CO2 laser engraving machines. Its laser beam focuses on a very small spot, enabling precise engraving of fine lines and complex patterns, with a minimum line width of up to the micron level. This is an indispensable advantage for products that require extremely high details, such as the logo of precision instruments, the pattern of jewelry, etc., and can effectively improve the quality and added value of the product.
In terms of efficiency, CO2 laser engraving machines are also quite competitive. Its engraving speed is fast, and it can complete a large number of processing tasks in a short period of time, and the processing process is continuous and stable, reducing the time of manual intervention. Compared with the traditional mechanical engraving method, it greatly shortens the production cycle, improves production efficiency, and is suitable for the needs of mass production.
Ease of operation and maintenance is also a highlight. The equipment is usually equipped with a user-friendly interface and automated control system, allowing operators to get started quickly with simple training, reducing the requirements for operator skill levels. At the same time, its structure is relatively simple, with few moving parts, low wear, and daily maintenance is mainly simple work such as regular cleaning of optical components, reducing maintenance costs and downtime.
In addition, CO2 laser engraving machines also have the advantage of environmentally friendly processing processes. There will be no large amount of dust and noise pollution during the engraving process, and there is no need to use auxiliary materials such as cutting fluid, which is conducive to maintaining a clean working environment and is in line with the concept of modern green production.
In summary, CO2 laser engraving machines have become important equipment in the field of modern processing with their wide material adaptability, high precision, high efficiency, easy operation and maintenance, and environmental protection, providing strong support for the development of various industries.
