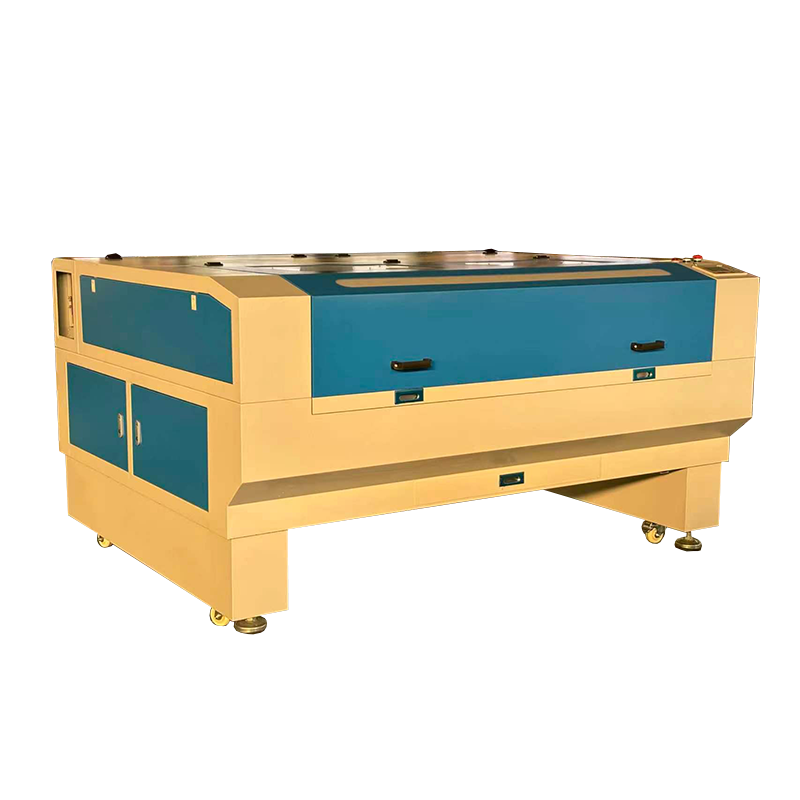

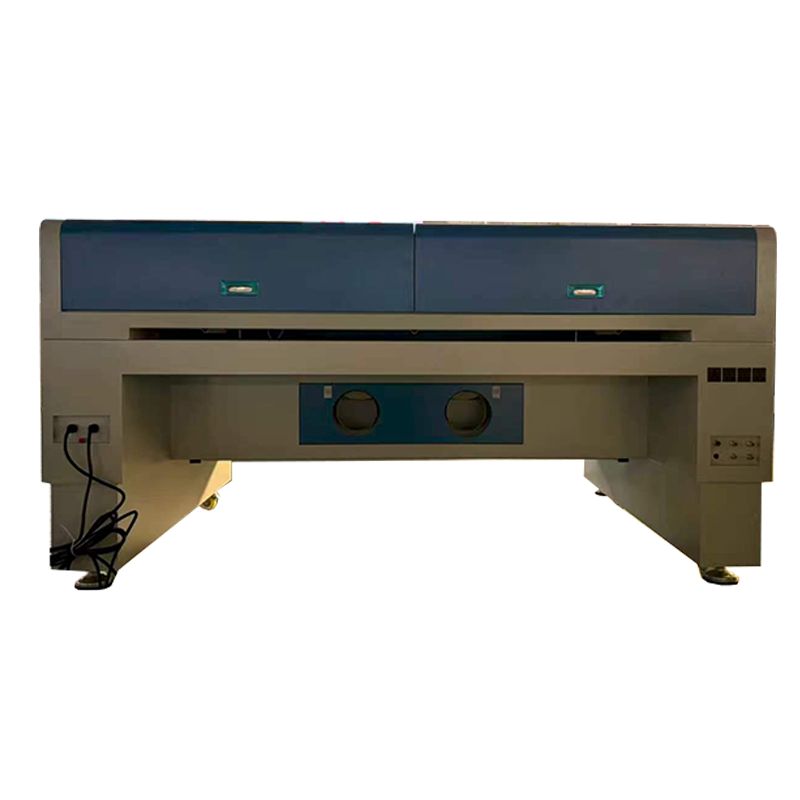

1610 Dual-Head Automatic Mutual Transfer Cutting

Short Description:

This machine adops DSP & laser power source with self owned property right as well as integrated frame-structure ensure the working stability and reliability, the latest software can support Auto CAD, CorelDRAW,CAM, and other graphical software, and it can to directly output pictures. The USB data interface support heat play & plug, quick data transiting without taking up computer resource. LCD display is easy for user to operate.

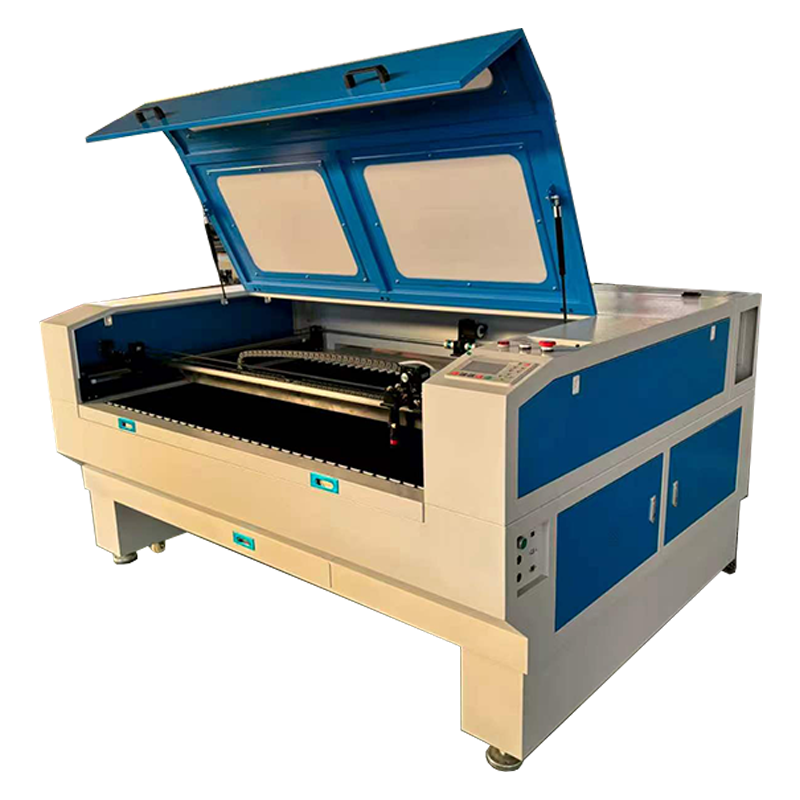

The 1610 dual-head automatic mutual transfer cutting machine is a practical and high-efficiency laser equipment specially designed for mass cutting and engraving work. The model name 1610 means it has a working size of 1600mm by 1000mm, which is a common and flexible table size for most workshop production needs. Different from ordinary single-head laser machines, this machine is equipped with two laser heads that can work independently or cooperate automatically. It is widely used for processing fabric, leather, acrylic, wood crafts, paper products and other common non-metal materials.

The biggest advantage of the dual-head design is faster production speed. The two heads can cut two identical patterns at the same time, or work separately in different areas of the table without conflicting with each other. For large orders and repeated crafts, it nearly doubles the working output compared with traditional single-head machines. The automatic mutual transfer system makes the two heads move smoothly and intelligently, avoiding collision and saving material space through reasonable layout.

This machine is very friendly to business owners and new operators. It keeps the same simple operation as ordinary laser machines, with easy-to-learn settings and clear software support. Workers only need to input the design file, and the machine will finish all cutting and engraving automatically. The cutting effect is clean and smooth with no rough edges, so no extra trimming or polishing work is required.

Overall, the 1610 dual-head laser machine is a cost-effective upgrade for workshops with large order pressure. It greatly improves production efficiency without requiring extra workers or extra workshop space. It is ideal for advertising products, garment accessories, leather goods, custom gifts and mass craft production, helping factories get more orders and make higher profits.

Send email to us Download To PDF

Detail

Product Parameter
model	1610
Outer dimensions	222020001080MM
Device color	White and blue
Laser type	CO2 Closed laser tube
laser power	60W/80W/100W/130W/150W
Cutting thickness	0-25MM depends on the material
The speed of carving	0-1000MM/S
cutting speed	0-500MM/S
positioning accuracy	±0.01MM
Minimal formative words	Chinese characters 22/MM and letters 11/MM
Image format	BMP, PLT, CDR, DMG, DXF, JPG, etc
input voltage	AC220V/110V50Hz
work space	1600x1000MM
cooling-down method	Water cooling and protection system
foot platform	Cellular platform / blade bar platform (optional)
system environments	Win XP/7/8
working temperature	0-45℃
weight of equipment	About 450KG

Product Description:

When it comes to material adaptability, CO2 laser engravers excel. It is capable of engraving a variety of materials, including wood, acrylic, fabric, leather, paper, plastic, glass, ceramics, and more. Whether it is soft fabric or hard glass, it can present exquisite engraving effects under its action, which makes it extremely practical in industries such as handicraft production, advertising signage, packaging and printing.
High engraving accuracy is a distinctive feature of CO2 laser engraving machines. Its laser beam focuses on a very small spot, enabling precise engraving of fine lines and complex patterns, with a minimum line width of up to the micron level. This is an indispensable advantage for products that require extremely high details, such as the logo of precision instruments, the pattern of jewelry, etc., and can effectively improve the quality and added value of the product.
In terms of efficiency, CO2 laser engraving machines are also quite competitive. Its engraving speed is fast, and it can complete a large number of processing tasks in a short period of time, and the processing process is continuous and stable, reducing the time of manual intervention. Compared with the traditional mechanical engraving method, it greatly shortens the production cycle, improves production efficiency, and is suitable for the needs of mass production.
Ease of operation and maintenance is also a highlight. The equipment is usually equipped with a user-friendly interface and automated control system, allowing operators to get started quickly with simple training, reducing the requirements for operator skill levels. At the same time, its structure is relatively simple, with few moving parts, low wear, and daily maintenance is mainly simple work such as regular cleaning of optical components, reducing maintenance costs and downtime.
In addition, CO2 laser engraving machines also have the advantage of environmentally friendly processing processes. There will be no large amount of dust and noise pollution during the engraving process, and there is no need to use auxiliary materials such as cutting fluid, which is conducive to maintaining a clean working environment and is in line with the concept of modern green production.
In summary, CO2 laser engraving machines have become important equipment in the field of modern processing with their wide material adaptability, high precision, high efficiency, easy operation and maintenance, and environmental protection, providing strong support for the development of various industries.
