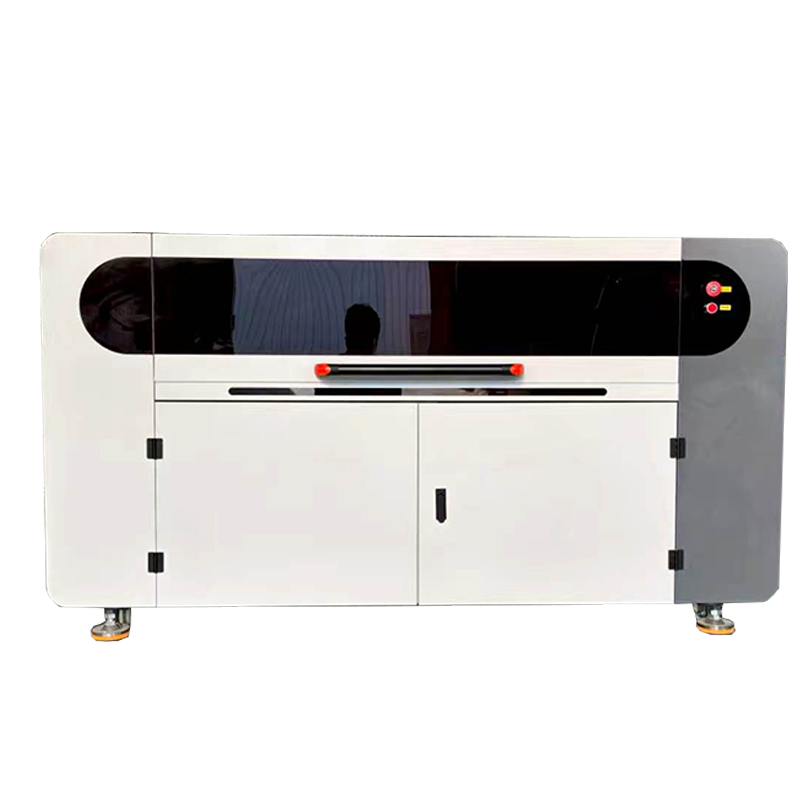

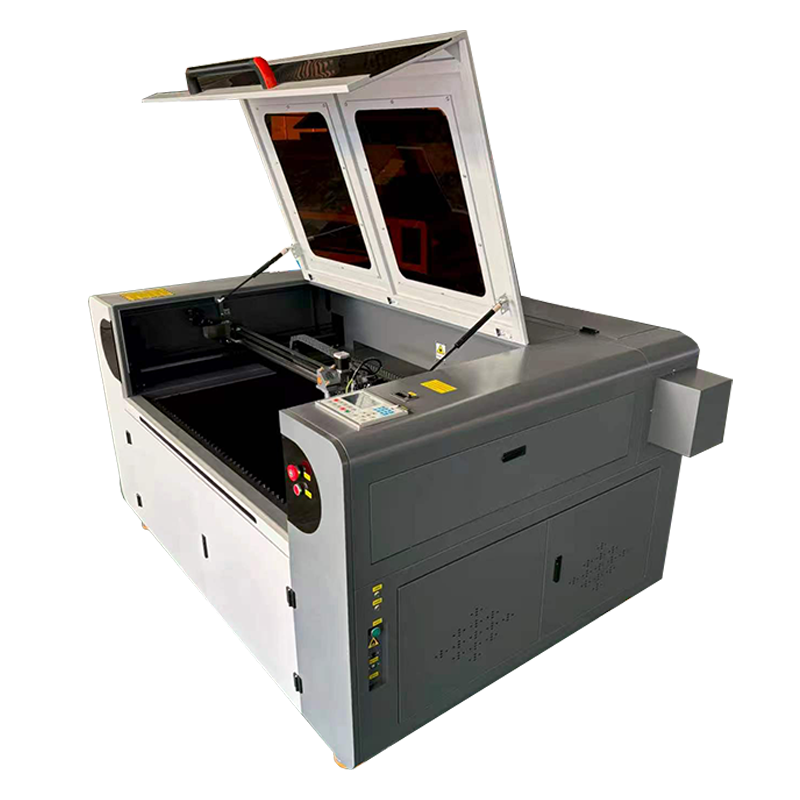

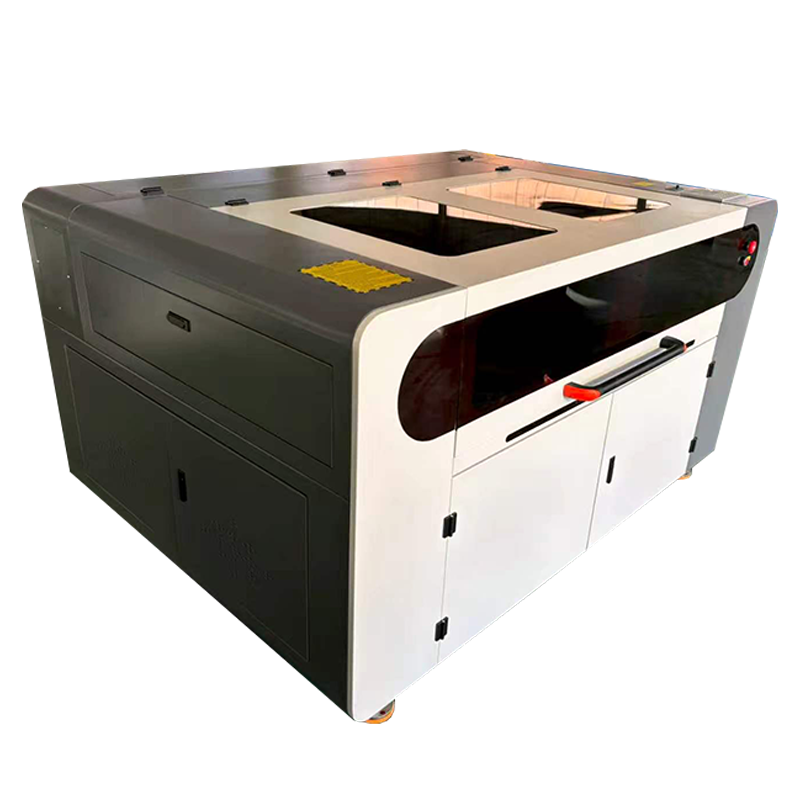

1390 CO2 Laser Engraving Machine Hybrid Cutter

Short Description:

This machine adops DSP & laser power source with self owned property right as well as integrated frame-structure ensure the working stability and reliability, the latest software can support Auto CAD, CorelDRAW,CAM, and other graphical software, and it can to directly output pictures. The USB data interface support heat play & plug, quick data transiting without taking up computer resource. LCD display is easy for user to operate.

Basic information of 1390 hybrid laser machine

The 1390 CO2 hybrid laser engraving and cutting machine is a popular all-in-one tool for small businesses and hobby workshops. The number 1390 stands for its working area: 1.3 meters wide and 0.9 meters long, a medium-sized table that fits most common craft boards without taking too much floor space. It is called a “hybrid cutter” because it can handle two kinds of materials separately. Normal low-power laser machines only cut wood, plastic and cloth, but this hybrid version uses stronger laser energy to carve non-metals and also cut thin metal sheets like thin stainless steel and iron. You can choose different laser power based on your daily work, from standard power for daily crafts to high power for thick materials and metal cutting. It runs automatically after you upload pictures, logos or patterns, no hand cutting or complicated tools needed.

What materials and projects can you make with it?

This machine covers most popular handmade and commercial projects. For non-metal work, you can process acrylic signs, wooden decorations, leather bags, fabric clothing labels, cardboard gift boxes, bamboo crafts, foam models and rubber stamps. For metal work, it cuts thin metal nameplates, small metal decorative parts and thin iron advertising letters. It suits many different small industries, such as advertising stores, custom gift shops, garment factories, furniture decoration studios and handmade craft studios. If you own one machine, you can take both metal and non-metal orders, instead of buying two separate machines for different materials. It supports small personalized custom orders as well as stable mass production for regular clients.

First, it creates clean and smooth edges on every material. After cutting, there are no rough burrs, so you skip time-consuming sanding and polishing work by hand. Second, it works without touching materials directly. Soft items like cloth and leather will not get pressed or deformed during processing. Third, it is super easy to learn. The control screen has simple operation buttons with bilingual languages, and you only need basic computer skills to send designs to the machine. One worker can look after several machines at the same time to save labor costs. Fourth, it does not require expensive molds. You can change any pattern on your computer anytime to meet customers’ unique design demands.

This hybrid machine helps shop owners save money in many ways. It combines two machine functions into one, cutting your equipment buying cost in half. It arranges patterns smartly on boards to reduce leftover waste materials, which lowers your raw material cost every month. Daily maintenance is cheap and simple; you only need to clean small lenses and change cooling water regularly, with no expensive blades to replace. The whole machine uses a solid steel frame, so it can run for a long time without frequent breakdowns. It also has full safety covers and smoke filters to keep your working environment safe and clean. Compared with single-function laser machines, it brings more business chances and higher profit for small workshops with limited budget.

Send email to us Download To PDF

Detail

Specifications
Laser Power	80W/100W/130W/150W/180W(optional)
Laser Type	Hermetic co2 glass tube
Power Supply	AC220±10% 50HZ/AC 110±10% 60HZ
Working Area	1300mm*900mm
Max Moving Speed	0---1000mm/s
Up&Down worktable	Electric up-down worktable
Worktable	Honeycomb Worktable/Aluminium Knife(optional)
Locating Precision	＜0.01mm
Min Shaping Character	Character:33mm, letter:22mm
Operating Temperature	5℃---35℃
Resolution Ratio	≤4500dpi
Control Configuration	DSP
DataTransfer Interface	USB(offline)
Svstem Environment	WINDOWS 2000/WINDOWS XP/Vista/win7
Cooling Way	water cooling and protection system
Graphic Format Supported	The files which CoreDraw,photoshop,AutoCAD can identify(BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX, CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX)
Compatible software	CorelDraw,AutoCAD
Cutting Thickness	0---20mm(Depends on different materials)
Color Separation	separation of cutting up to 256 colors
Sloping Engraving	yes,slope can be designed discretionarily
Cuts off the Water Supply the Protection	yes
New Weight	400kg(80W/100W/130W/150W) 450kg(180W)
Gross Weight	450kg(80W/100W/130W/150W) 470kg(180W)

Product Description:

When it comes to material adaptability, CO2 laser engravers excel. It is capable of engraving a variety of materials, including wood, acrylic, fabric, leather, paper, plastic, glass, ceramics, and more. Whether it is soft fabric or hard glass, it can present exquisite engraving effects under its action, which makes it extremely practical in industries such as handicraft production, advertising signage, packaging and printing.
High engraving accuracy is a distinctive feature of CO2 laser engraving machines. Its laser beam focuses on a very small spot, enabling precise engraving of fine lines and complex patterns, with a minimum line width of up to the micron level. This is an indispensable advantage for products that require extremely high details, such as the logo of precision instruments, the pattern of jewelry, etc., and can effectively improve the quality and added value of the product.
In terms of efficiency, CO2 laser engraving machines are also quite competitive. Its engraving speed is fast, and it can complete a large number of processing tasks in a short period of time, and the processing process is continuous and stable, reducing the time of manual intervention. Compared with the traditional mechanical engraving method, it greatly shortens the production cycle, improves production efficiency, and is suitable for the needs of mass production.
Ease of operation and maintenance is also a highlight. The equipment is usually equipped with a user-friendly interface and automated control system, allowing operators to get started quickly with simple training, reducing the requirements for operator skill levels. At the same time, its structure is relatively simple, with few moving parts, low wear, and daily maintenance is mainly simple work such as regular cleaning of optical components, reducing maintenance costs and downtime.
In addition, CO2 laser engraving machines also have the advantage of environmentally friendly processing processes. There will be no large amount of dust and noise pollution during the engraving process, and there is no need to use auxiliary materials such as cutting fluid, which is conducive to maintaining a clean working environment and is in line with the concept of modern green production.
In summary, CO2 laser engraving machines have become important equipment in the field of modern processing with their wide material adaptability, high precision, high efficiency, easy operation and maintenance, and environmental protection, providing strong support for the development of various industries.
