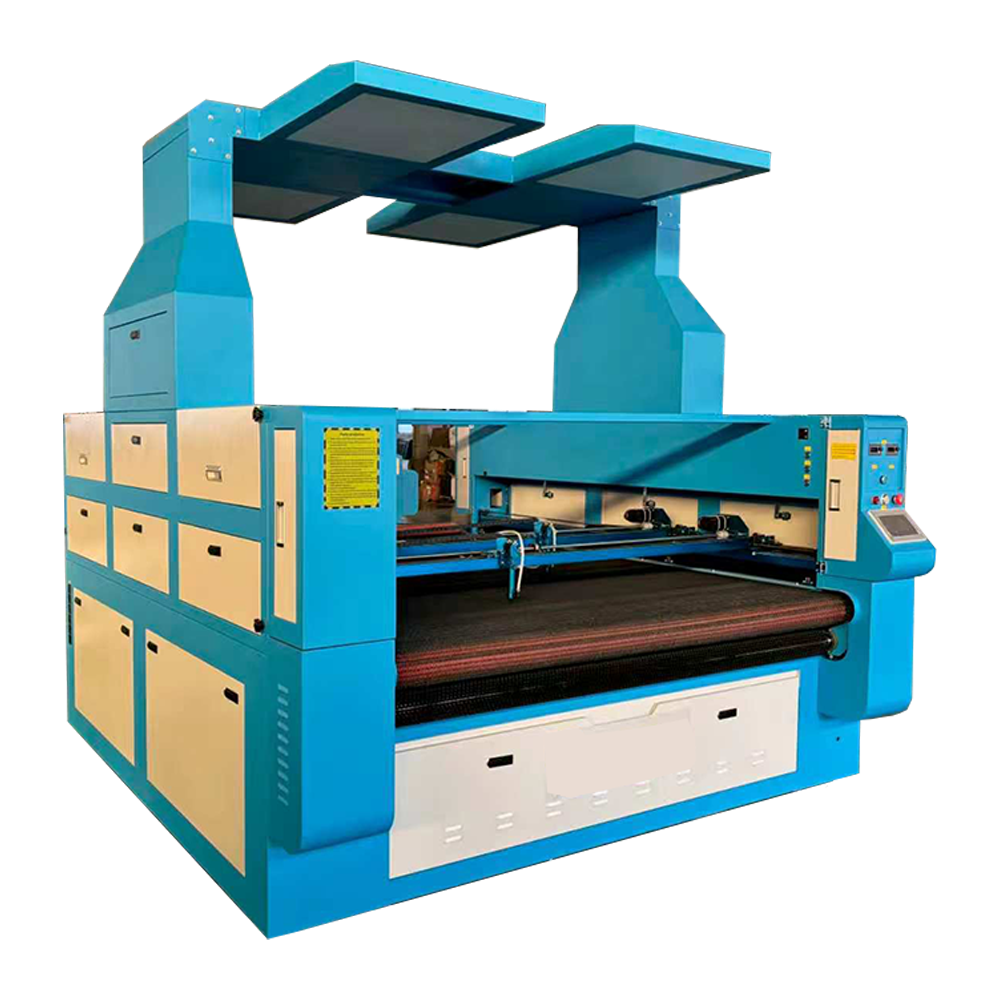

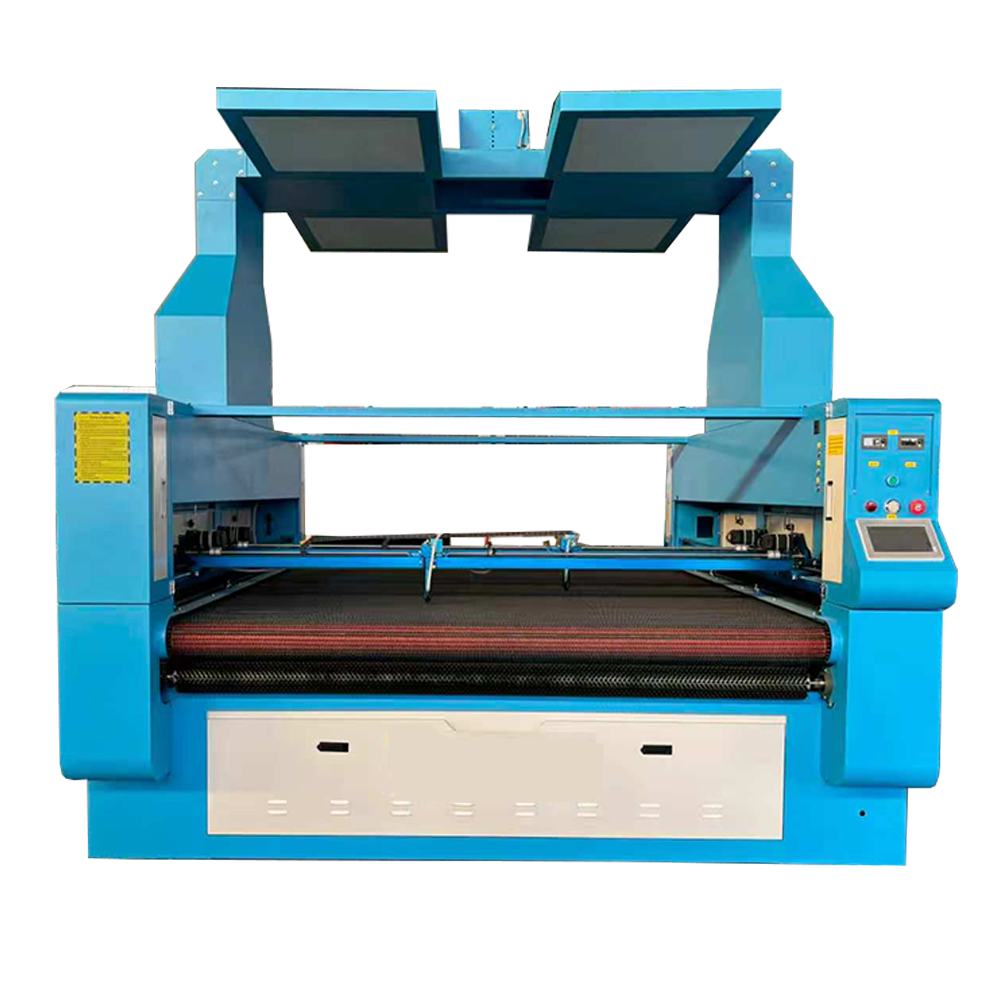

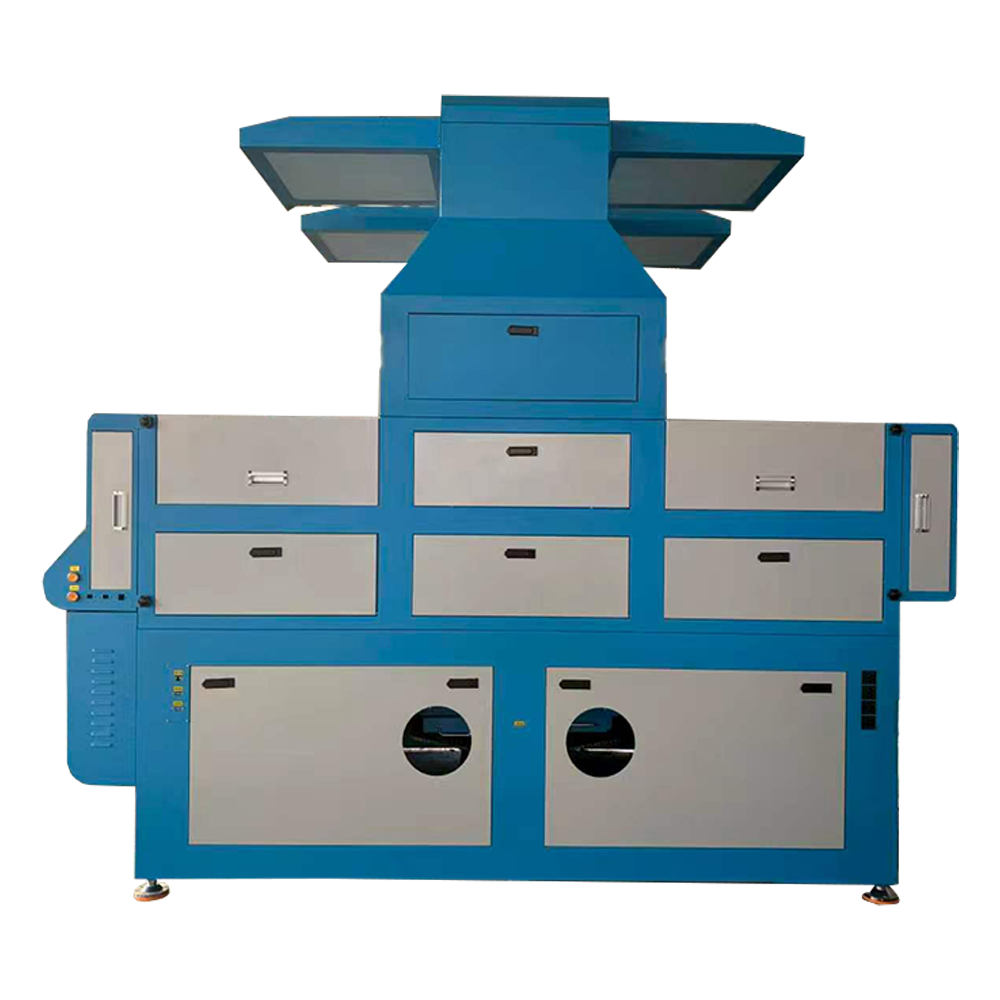

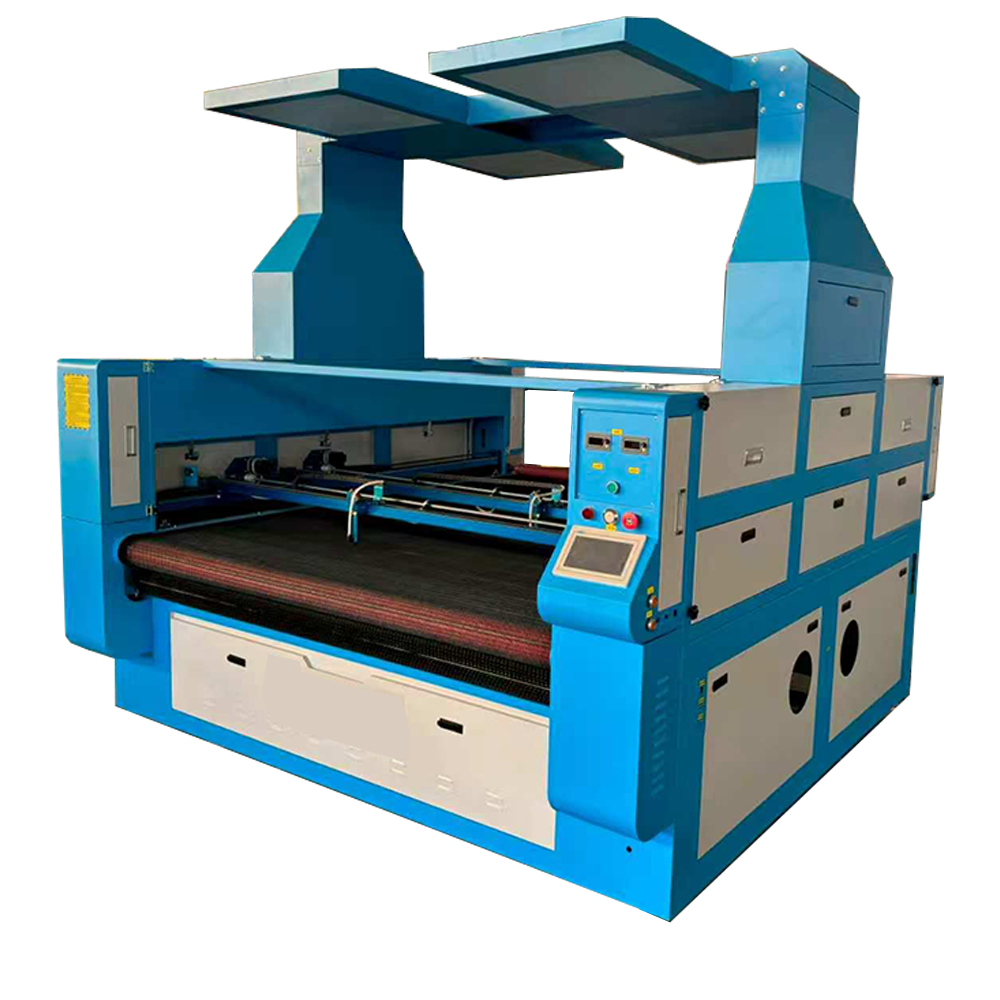

1818 Double Beam Double-Head Large CCD CO2 Laser Engraving And Cutting Machine

Short Description:

This machine adops DSP & laser power source with self owned property right as well as integrated frame-structure ensure the working stability and reliability, the latest software can support Auto CAD, CorelDRAW,CAM, and other graphical software, and it can to directly output pictures. The USB data interface support heat play & plug, quick data transiting without taking up computer resource. LCD display is easy for user to operate.

The 1818 CCD laser cutting machine is a large-size, camera-guided laser processing device widely used for custom and pattern cutting businesses. Its name 1818 means it has a square working area of 1.8 meters by 1.8 meters, offering a super spacious table to handle large sheets and long roll materials that ordinary small laser machines cannot process. The biggest highlight of this machine is the built-in CCD visual camera system, which sets it apart from traditional manual positioning laser cutters.

Unlike regular machines that require workers to manually align patterns and set cutting positions, the high-precision CCD camera can automatically scan all printed, printed and embroidered patterns on materials. It intelligently identifies every graphic position, then guides the laser to cut strictly along the pattern edges. This function solves the biggest problem of traditional cutting: position deviation and wasted materials. It works perfectly for various printed fabrics, leather with printed logos, embroidery patches, and all customized patterned products.

This machine supports most common non-metal materials, including fabric, textile, leather, acrylic, wood board, cardboard and rubber. It fits multiple industries such as clothing custom making, leather goods processing, advertising signage, craft gifts and toy production. Whether you need fine engraving or precise full cutting, it can finish the work neatly. It is especially suitable for shops and factories that focus on personalized custom orders and batch patterned product processing.

In terms of usability, this machine is extremely friendly to beginners. You only need to fix the materials on the table, and the camera will complete positioning automatically. No professional drawing or complicated parameter setting is needed. Equipped with a stable beam structure, it runs smoothly without shaking even during long-hour continuous work, ensuring every finished product has consistent quality. The cutting edge is smooth and burr-free, requiring no secondary polishing or trimming.

For business owners, this machine greatly improves production efficiency and profit. Automatic visual positioning saves a lot of manual alignment time and reduces material waste caused by human error. Its large 1.8m square working area improves single-time processing output, suitable for both small custom orders and large batch production. Durable and low-maintenance, it is a cost-effective upgrade for traditional laser cutting equipment.

Send email to us Download To PDF

Detail

Specifications
Laser Power	60W/80W/100W/120W/150W
Laser Type	Hermetic co2 glass tube
Power Supply	AC220V/110V50Hz
Working Area	1800*1800MM
Carving speed	0-1000MM/S
Up&Down worktable	Electric up-down worktable
Worktable	Honeycomb platform/blade/automatic feeding (optional)
Locating Precision	＜0.01mm
Min Shaping Character	Chinese character 22 / letter 11 MM
Operating Temperature	0℃---45℃
Resolution Ratio	≤2500dpi
Control Configuration	DSP
DataTransfer Interface	USB(offline)
Svstem Environment	WINDOWS 2000/WINDOWS XP/Vista/win7/win8/win10
Cooling Way	water cooling and protection system
Graphic Format Supported	The files which CoreDraw,photoshop,AutoCAD can identify(BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX, CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX)
Compatible software	the files which CoreDraw,photoshop,AutoCAD can identify(BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX, CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX)
Cutting Thickness	0---25mm(Depends on different materials)
Color Separation	separation of cutting up to 256 colors
Sloping Engraving	yes,slope can be designed discretionarily
Cuts off the Water Supply the Protection	yes
Machine Dimension	250022002300MM
Package Dimension	2700×2400×2450 mm
Device weight	≈700KG

Product Description:

When it comes to material adaptability, CO2 laser engravers excel. It is capable of engraving a variety of materials, including wood, acrylic, fabric, leather, paper, plastic, glass, ceramics, and more. Whether it is soft fabric or hard glass, it can present exquisite engraving effects under its action, which makes it extremely practical in industries such as handicraft production, advertising signage, packaging and printing.
High engraving accuracy is a distinctive feature of CO2 laser engraving machines. Its laser beam focuses on a very small spot, enabling precise engraving of fine lines and complex patterns, with a minimum line width of up to the micron level. This is an indispensable advantage for products that require extremely high details, such as the logo of precision instruments, the pattern of jewelry, etc., and can effectively improve the quality and added value of the product.
In terms of efficiency, CO2 laser engraving machines are also quite competitive. Its engraving speed is fast, and it can complete a large number of processing tasks in a short period of time, and the processing process is continuous and stable, reducing the time of manual intervention. Compared with the traditional mechanical engraving method, it greatly shortens the production cycle, improves production efficiency, and is suitable for the needs of mass production.
Ease of operation and maintenance is also a highlight. The equipment is usually equipped with a user-friendly interface and automated control system, allowing operators to get started quickly with simple training, reducing the requirements for operator skill levels. At the same time, its structure is relatively simple, with few moving parts, low wear, and daily maintenance is mainly simple work such as regular cleaning of optical components, reducing maintenance costs and downtime.
In addition, CO2 laser engraving machines also have the advantage of environmentally friendly processing processes. There will be no large amount of dust and noise pollution during the engraving process, and there is no need to use auxiliary materials such as cutting fluid, which is conducive to maintaining a clean working environment and is in line with the concept of modern green production.
In summary, CO2 laser engraving machines have become important equipment in the field of modern processing with their wide material adaptability, high precision, high efficiency, easy operation and maintenance, and environmental protection, providing strong support for the development of various industries.
