Specifications of the CNF200w series pulsed fiber laser
|
Laser Type Characteristic |
YDFLP-CL2-200-1-A |
|
|
M² |
<1.5 |
|
|
Delivery Cable Length |
m |
5 |
|
Average Output Power |
W |
>200 |
|
Maximum Pulse Energy |
mJ |
2 |
|
Pulse Frequency Range |
kHz |
1-3000 |
|
Pulse Width |
ns |
13-500 |
|
Output Power Instability |
% |
<5 |
|
Cooling Method |
Air Cooled |
|
|
Power Supply Voltage |
V |
48V |
|
Power Consumption |
W |
<700 |
|
Power supply current requirement |
A |
>14.6 |
|
Central Wavelength |
nm |
1064 |
|
Emission Bandwidth （FWHM）@3dB |
nm |
<15 |
|
Polarization |
Random |
|
|
Anti-Reflection Protection |
Yes |
|
|
Output Beam Diameter |
mm |
6.0±1.0 |
|
Output Power Tuning Range |
% |
0～100 |
|
Ambient Temperature Range |
℃ |
0～40 |
|
Storage Temperature Range |
℃ |
- 10～60 |
|
Dimensions |
mm |
500*330*83 |
|
Weight |
Kg |
47.5 |
Product Description:
Collimated laser beam output, scanner size customizable.

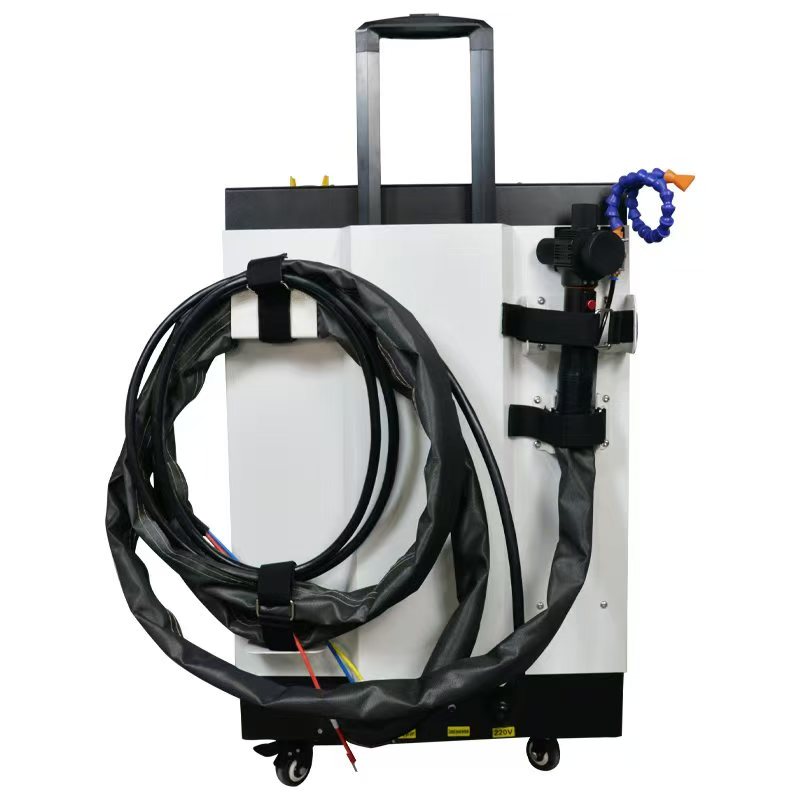

The cleaning head is extremely lightweight, 700g only (not include delivery cable), and can be operated by hand for a long time
Patented red light assisted focus technology, can adjust the focus position according to different focus lenses
Wireless control, can realize parameter setting and emission control remotely, and update parameters at anytime

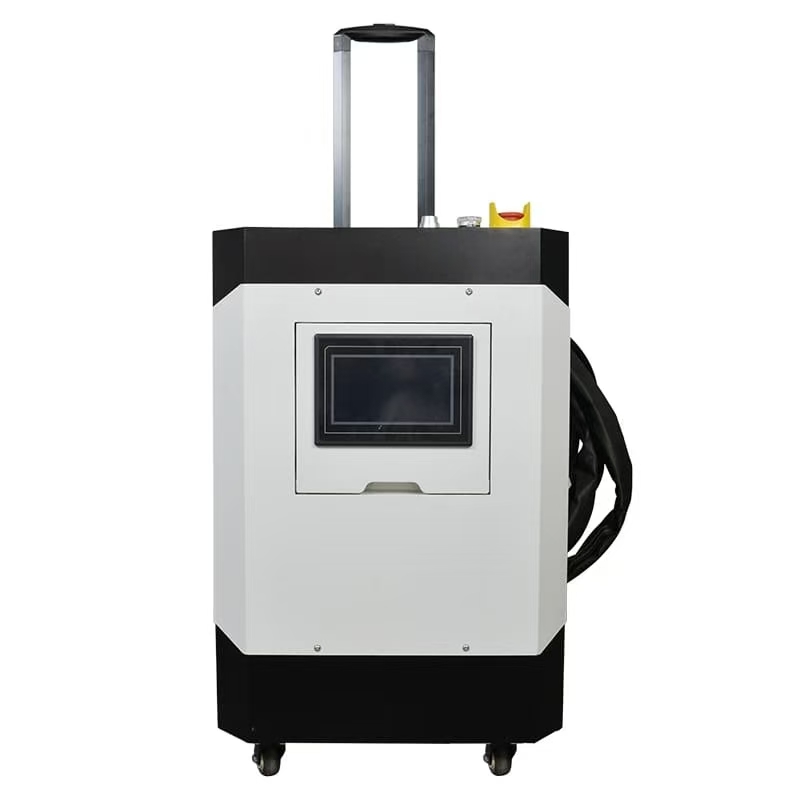

Unique widened and miniaturized design, more compact and beautiful, more stable, more firm, more convenient to move.Total weight 47.5kg, can be moved easily to anywhere you want to work at.
